Pneumatic

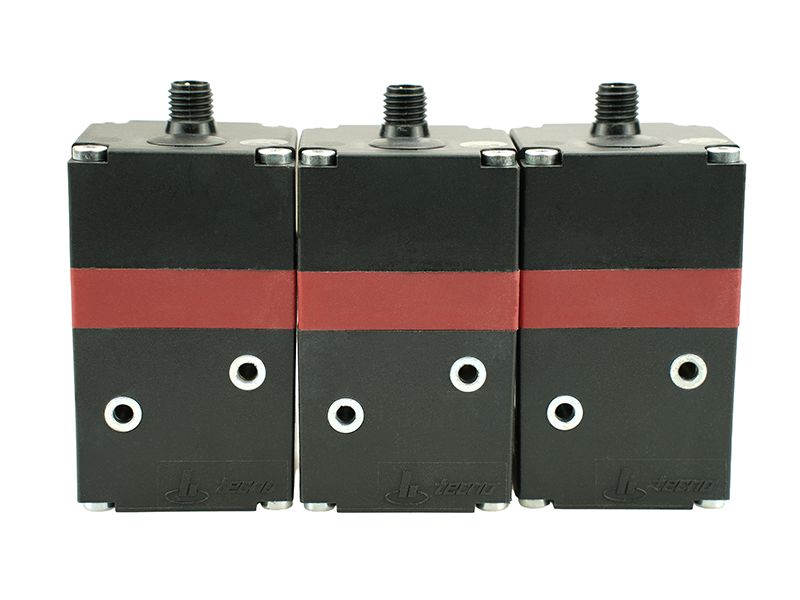

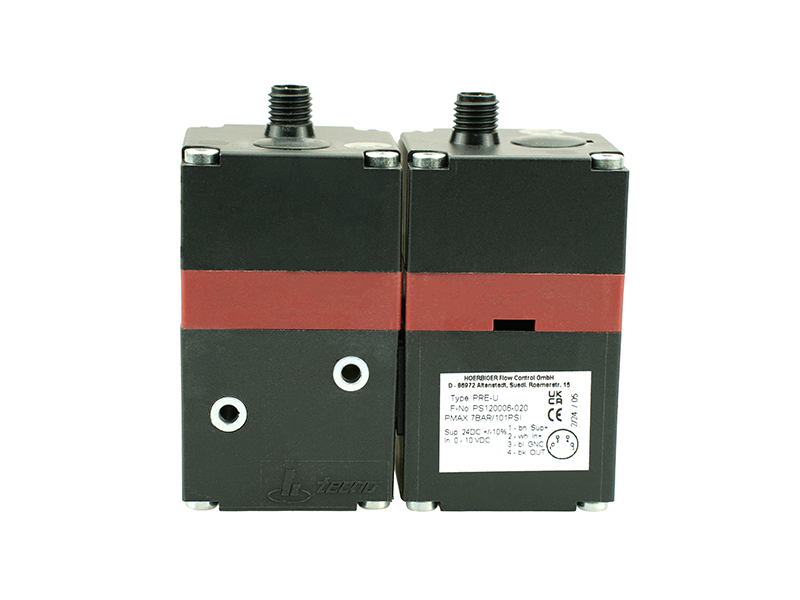

Tecno basic
Economical electro-pneumatic proportional valve controlling air pressure and flow continuously based on input signal. Features simple structure, reliability, and high cost-performance ratio. Suitable for general automation equipment with moderate precision requirements.
产品特点
- free of self heating
- free of control noise
- control from 0 bar
- high control stability
- dynamic pressure control
Model：
PRE-U/I-PS120000/01/06-002/020/080-0XX
Input Signal：
0-10V / 4-20mA
Max Pressure：
1.0 MPa
Max Flow：
350 I/min
Repeatability：
±1%
Temperature：
0°C - 50°C
典型应用领域
Tecno basic广泛应用于以下领域：
- Packaging machinery
- Metal Processing & Forming
- General automation lines
- Pneumatic test benches
- Testing & Test Equipment
